WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
| Model | TU-N02 | TU-N03 | TU-N04 | TU-N06 | TU-N08 |
| Crimp Force | 2.0Ton | 3.0Ton | 4.0Ton | 6.0Ton | 8.0Ton |
| Stroke | 30mm (custom available) | ||||
| Power Supply | 110/220VAC,50/60Hz | ||||
| Power | 750W | 1100W | 1500W | 2200W | 3000W |
| Weight | 55kg | 59kg | 96kg | 165kg | 169kg |
| Dimensions | 24*27*65cm | 24*27*65cm | 31*21*75cm | 38*31*85cm | 38*31*85cm |

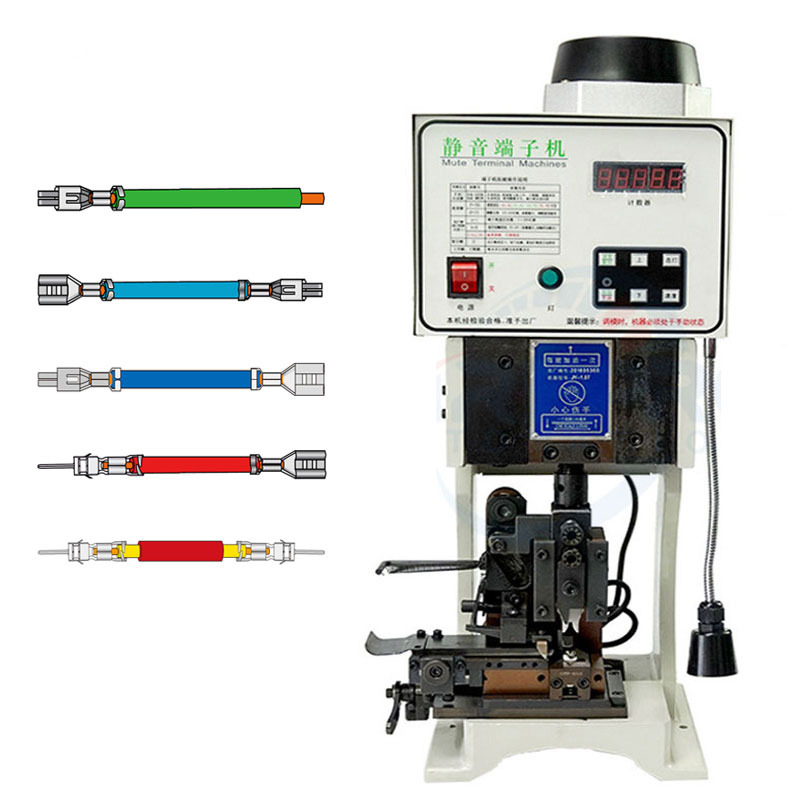

This series semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator. Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
Features:
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and automatic mode, easy to change
5. LED display shows crimped terminals quantity
Different sizes of wires and terminal thicknesses require crimping machines with different crimping force
Machine sizes from 2T to 8T
Wire and Terminal Samples:
Applicators:
A. Small Wire Gauge Wire Cutting and Stripping Machines
One core wire stripping samples
B. Big Gauge Cable Cutting and Stripping Machine
A. Multi-cores Cable Cutting and Stripping Machine
B. Flat Cable Cutting and Stripping Machine
Small size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
|
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
|
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
